配件系列 — CB雙耳環
技術參數

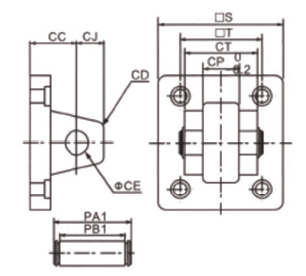

外型尺寸
| 缸徑/符號 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 |
| CC | 19 | 20 | 19 | 21 | 30 | 32 | 50 | 55 | 65 | 70 |
| CD | 5 | 5 | 3 | 3 | 8 | 8 | 25 | 30 | 27 | 40 |
| CE | 12 | 14 | 14 | 14 | 20 | 20 | 25 | 30 | 30 | 40 |
| CJ | 12 | 12 | 11 | 11 | 16 | 18 | 21 | 23 | 27 | 40 |
| CP | 17.6 | 22.2 | 23.5 | 24.2 | 36.6 | 37 | 73.6 | 95.6 | 91 | 110 |
| CT | 33 | 42.8 | 50.5 | 52.2 | 61.6 | 62 | 115 | 153.6 | 178 | 200 |
| PA1 | 42.5 | 52 | 59 | 64 | 72 | 72 | 129 | 168 | 195 | 240 |
| S | 45.7 | 50 | 61.5 | 74.5 | 91.5 | 110 | 138 | 175 | 220 | 280 |
| T | 33 | 37 | 47 | 56 | 70 | 84 | 110 | 140 | 175 | 225 |
