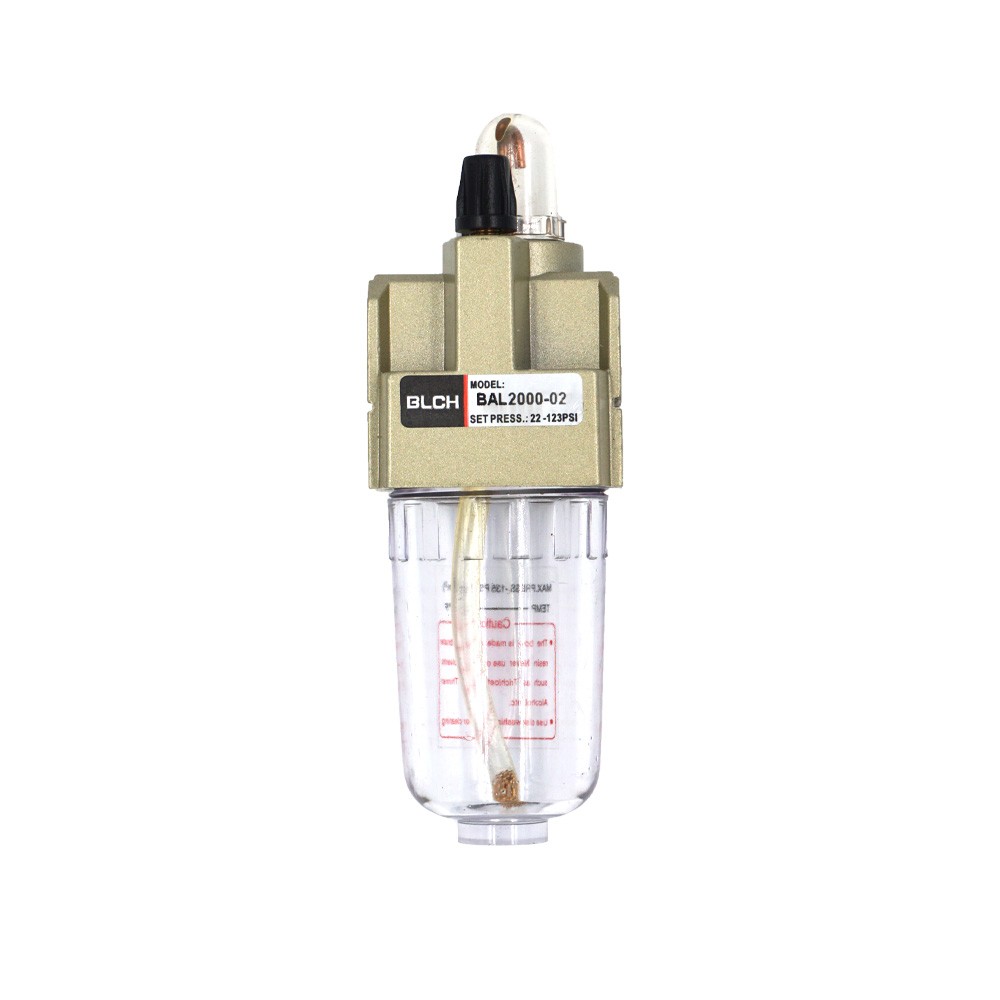

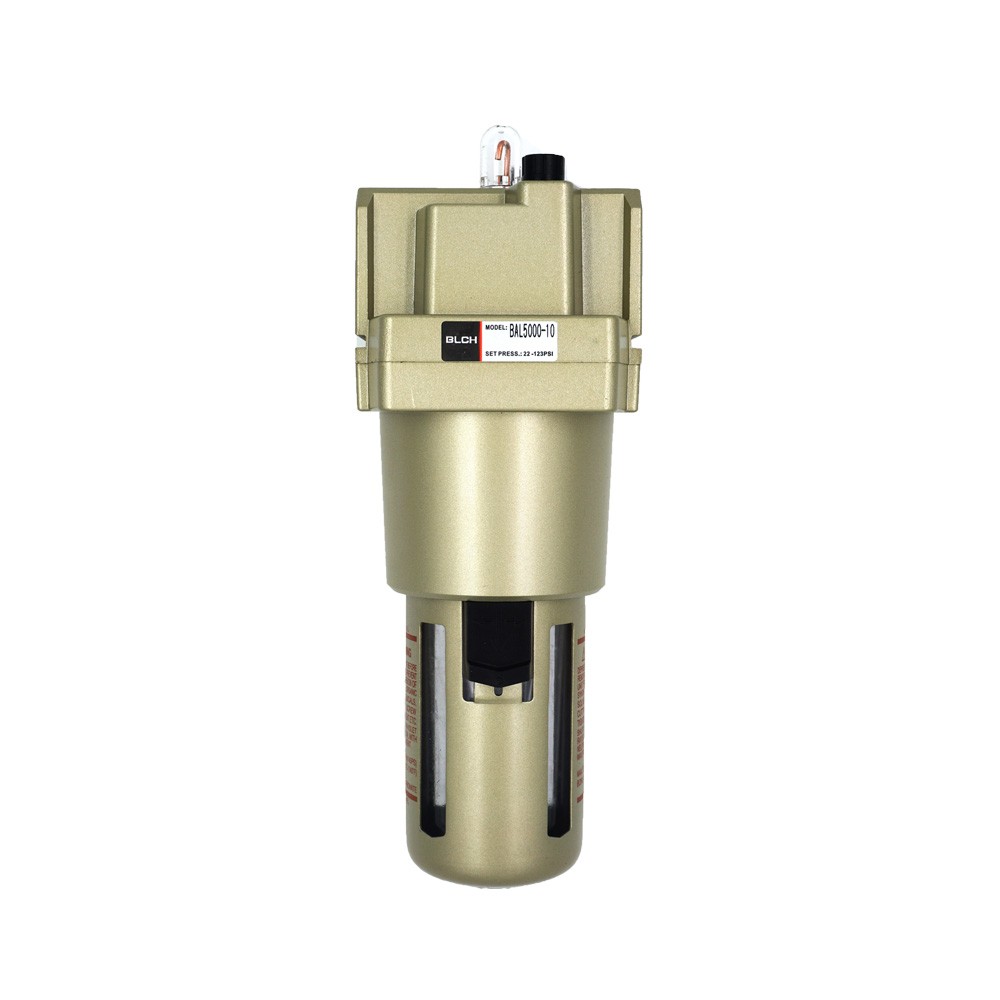

氣源處理件 — AL系列油霧器
技術參數

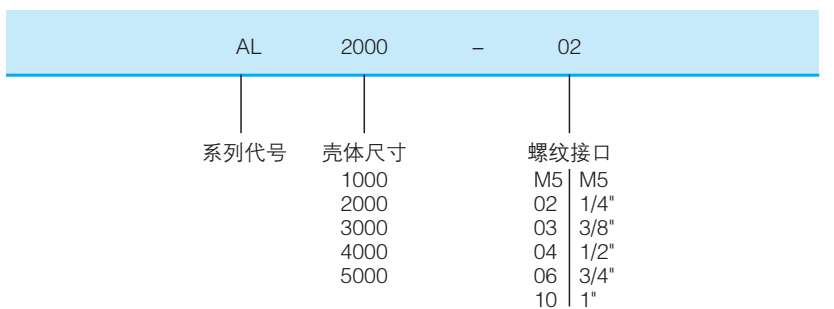

訂貨型號
技術參數
| 型號 | 額定流量(L/min) | 規格 | ||
| 額定流量(L/min) | 接管口徑Rc(PT) | 杯容量(cm2) | ||
| AL1000-M5 | 4 | 95 | M5 | 7 |
| AL2000-02 | 15 | 800 | 1/4 | 25 |
| AL3000-02 | 30 | 1700 | 1/4 | 50 |
| AL3000-03 | 40 | 5000 | 3/8 | 50 |
| AL4000-03 | 40 | 5000 | 3/8 | 130 |
| AL4000-04 | 50 | 5000 | 1/2 | 130 |
| AL4000-06 | 50 | 6300 | 3/4 | 130 |
| AL5000-06 | 190 | 7000 | 3/4 | 130 |
| AL5000-10 | 190 | 7000 | 1/1 | 130 |
外型尺寸
圖形符號

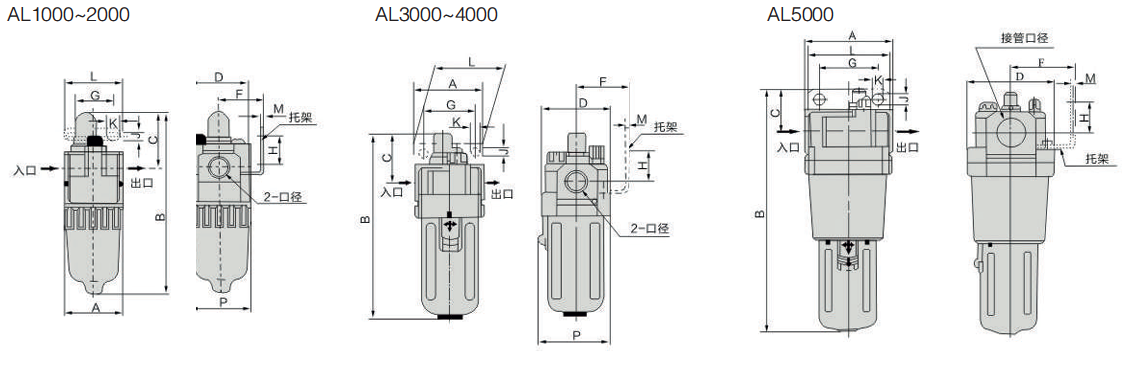

外型尺寸
| 型號 | 口徑 | A | B | C | D | E | F | G | H | J | K | L | M | N |
| AL1000-M5 | M5 | 25 | 77 | 25 | 25 | - | - | - | - | - | - | - | - | 25 |
| AL2000-01/02 | 1/8·1/4 | 40 | 118 | 39 | 40 | 12 | 30 | 27 | 21.24 | 5.5 | 8.5 | 40 | 1.8 | 40 |
| AL3000-02/03 | 1/4·3/8 | 53 | 141 | 37 | 53 | 14 | 41 | 40 | 24 | 6.5 | 8 | 53 | 1.8 | 55 |
| AL4000-03/04 | 3/8·1/2 | 70 | 177 | 43 | 70 | 17 | 50 | 51.5 | 24 | 8.5 | 12 | 69 | 1.8 | 72 |
| AL4000-06 | 3/4 | 75 | 180 | 43 | 70 | - | - | - | - | - | - | - | - | 72 |
| AL5000-06/10 | 3/4·1 | 90 | 255 | 47 | 90 | - | - | - | - | - | - | - | - | - |
